With the RXMini, a brand new box mod has been added to the very popular RX series. This unit features a compact form factor, 80 watts of power, an internal 2100mAh battery and all the temperature control functionality you may need, including TCR mode.

The RXMIni has all the same functionality as other RX box mods, but features only 80 watts of output power to allow for the smaller dimensions. The unit has the following operating modes: power mode, bypass mode, TC nickel mode, TC titanium mode, TC stainless steel mode and TCR mode. With the latter, you can enter your own resistance settings for your coil’s wire. The mod can fire atomizers all the way down to just 0.05Ω in temperature modes or 0.1Ω in power/bypass modes. These specs result in the mod working with most atomizers, builds or tanks out there.

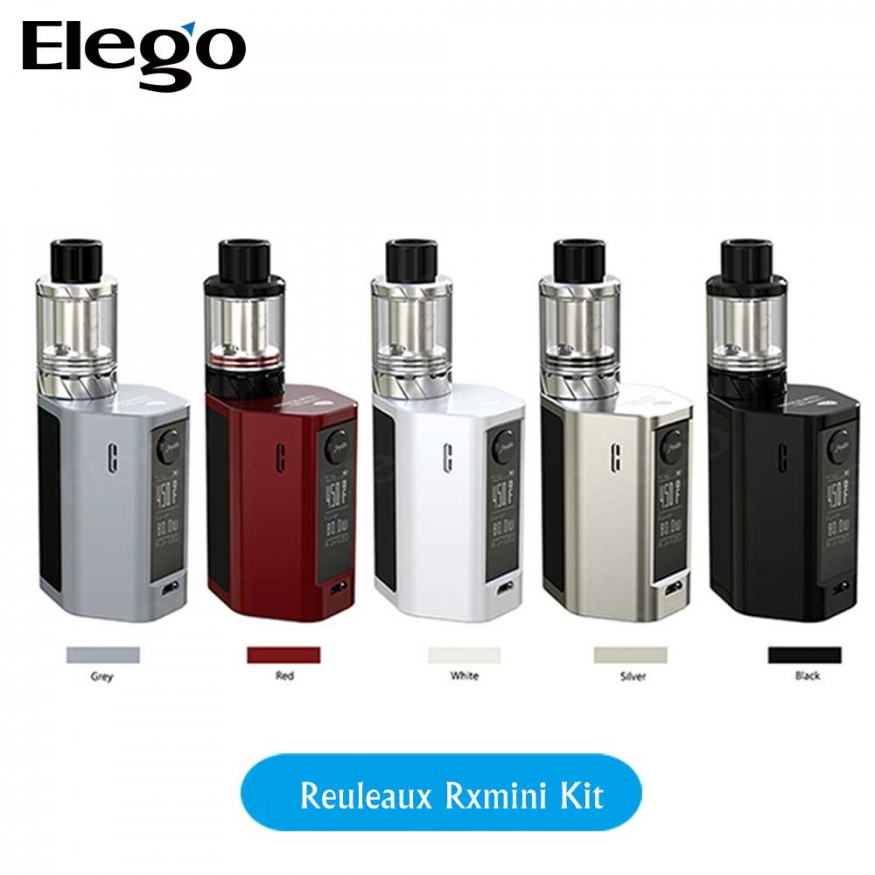

The mini mod is actually a scaled-down version of the larger RX series of mods. Designed by JayBo to be compact, it measures just 44.5mm x 35.5mm x 58.0mm and is said to be easy to hold and use. It is available in the following colors: silver, black, grey, red and white.

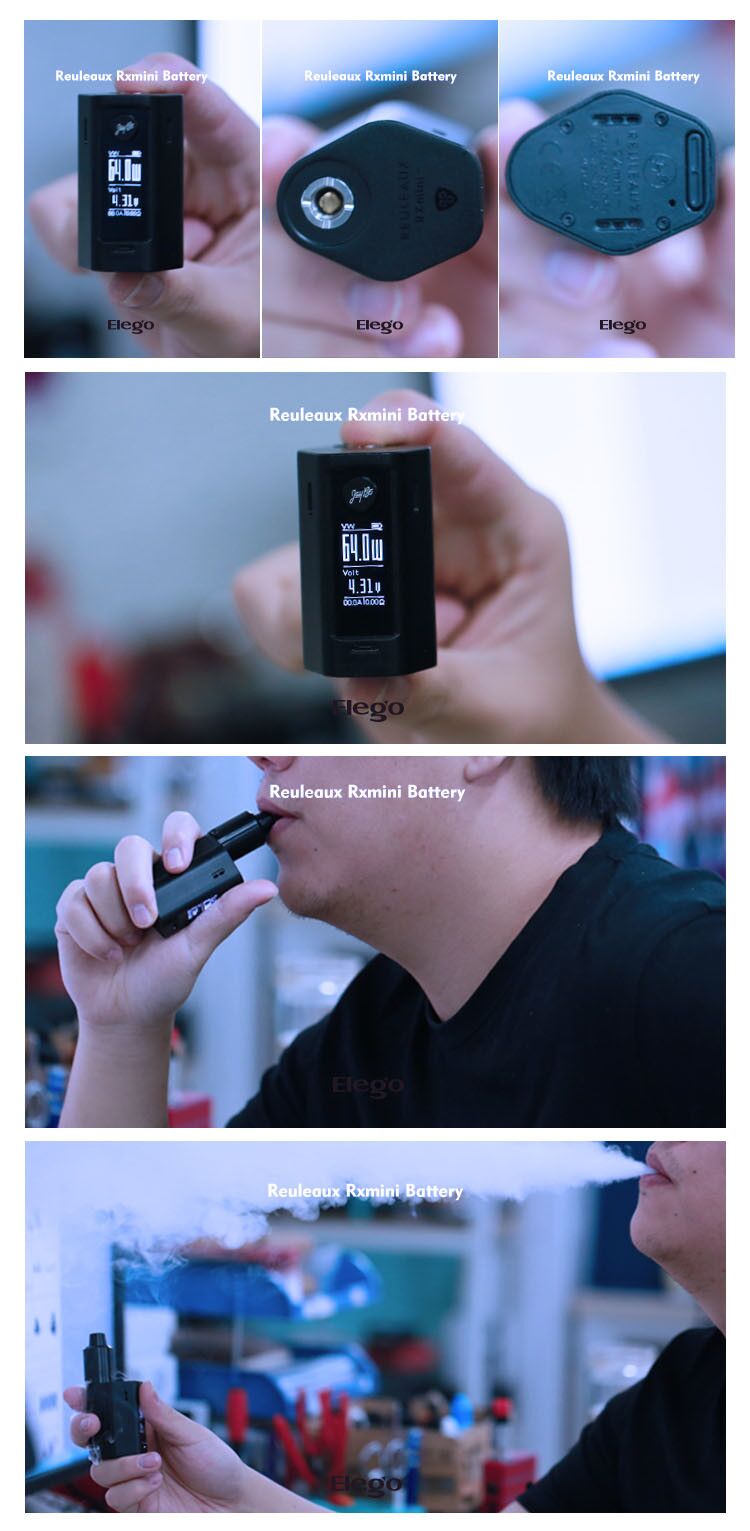

The control face of the RXMini is on the side of the device and features a similar OLED screens you will find in other RX mods such as the RX200S or RX2/3 with a menu in vertical formation. Above the display, there’s also the same firing button with Jaybo logo and on the bottom, you can see the USB port that is used for charging the 2100mAh built-in cell. The port is also used to upgrade the mod in case new features are released. At the top of the RXmini mod, there’s a 510 connection bezel that features a spring-loaded center pin for convenient atomizer installs.

The adjustment buttons have been moved to the bottom of the device to allow for the smaller size. Underneath the controls, you will find a reset button in case you had an error upgrading the device. Simply insert a small object such as a needle to restore the unit to factory settings.
