hotcig DX200 with Evolv chip
본문
Contact: Jay Mo Skype: silver02747 Email: 04@hotcig.net
Evolv DNA 200 is a power regulated digital switch-mode DC-DC converter for personal vaporizers. It features Evolv’s patented Wattage Control, Temperature Protection, Preheat, OLED Screen, and waterproof onboard buttons. The USB port and Evolv’s EScribe software can be used to customize or monitor the user experience.
Specification of the Chip :
| Minimum | Typical | Max |
Output Power | 1Wat |
| 200Watts |
Output Voltage | 0.5Volts |
| 9.0Volts |
Output Current,Continuous |
|
| 50.0Amps |
Output Current,instantaneous peak |
|
| 55.0 Amps |
Atomizer Resistance,temperature sensing wire,cold |
| 0.1 Ohm |
|
Atomizer Resistance, kanthal wire |
| 0.2 Ohm |
|
Temperature Limit | 200 ℉ | 450 ℉ | 600 ℉ |
Input Voltage | 9.0Volts | 11.1 Volts | 12.6 Volts |
Input Current | 0.5Amps | 9.0 Amps | 23.0 Amps |
Screen On Current |
| 18mA |
|
Quiescent Current |
| 4.5mA |
|
Power Down Current |
|
| 25uA |
Efficiency |
| 97% |
|
Weight |
| 15g |
|
Footprint | 0.71’’x2.80’’ |
| 18mm x 71mm |
Thickness |
| 0.32’’ |
|
Screen size |
| 0.91’’OLED |

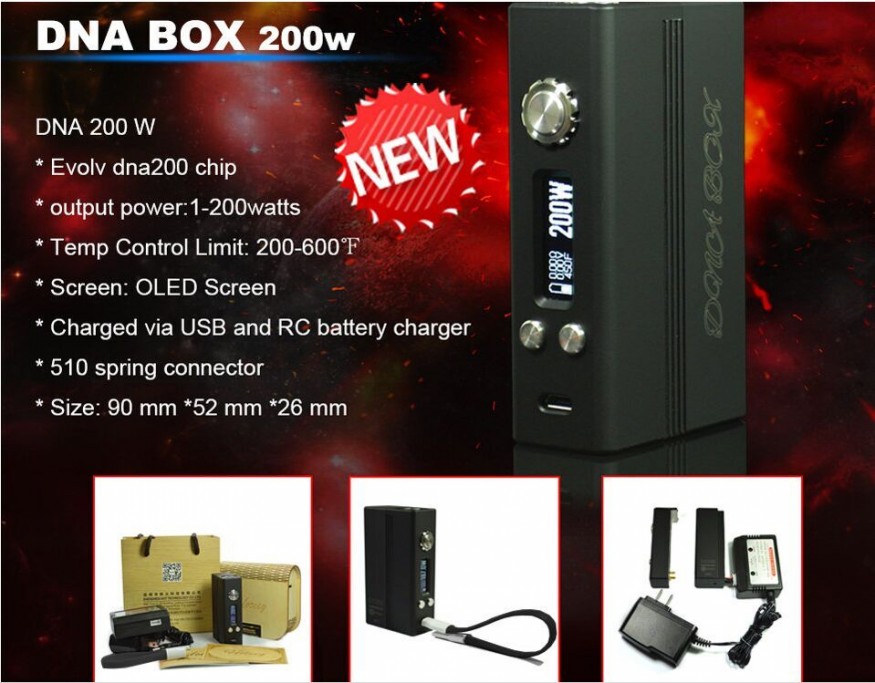

Dtailed info of DNA BOX 200w:
* Evolv dna200 chip
* output power:1-200watts
* Temp Control Limit: 200-600℉
* Screen: OLED Screen
* 3s Li-po 11.1v 900mAh battery
* Charged via USB and RC batery charger
* 510 spring connector
* colors: black/white .....
* size: 90*26*52 mm

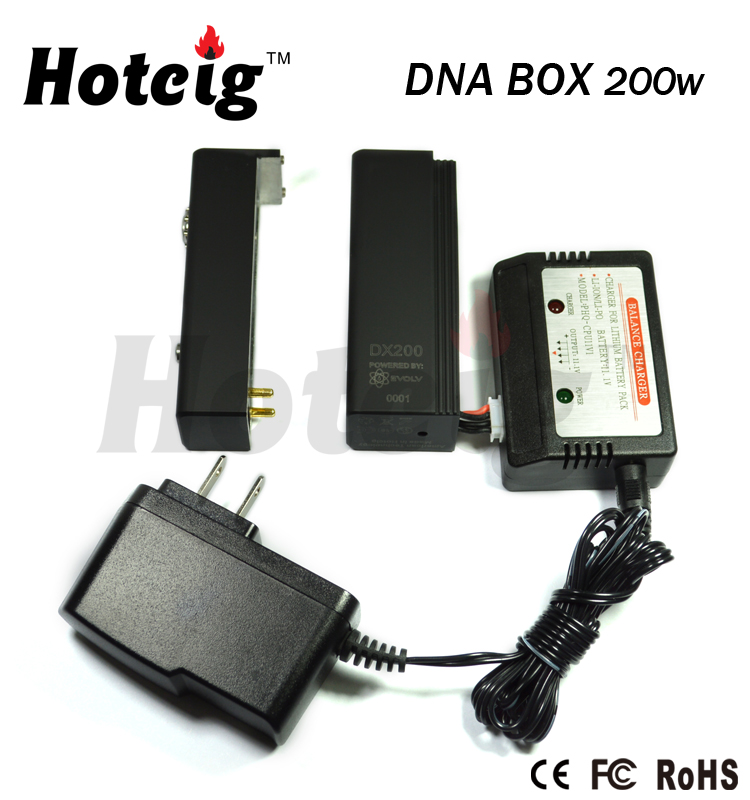

Full set of dna200 mod include:
*1 mod (include 1 battery)
*1 usb cable
*1 RC battery charger
*1 handbag
*1 wood box
*1 specification and card
